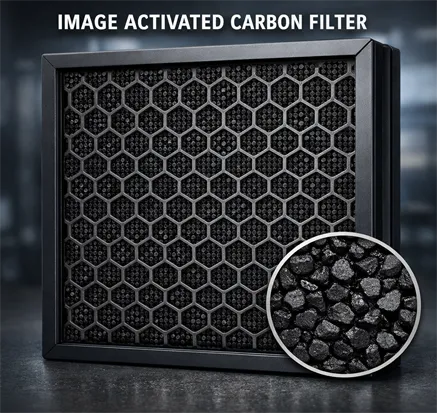

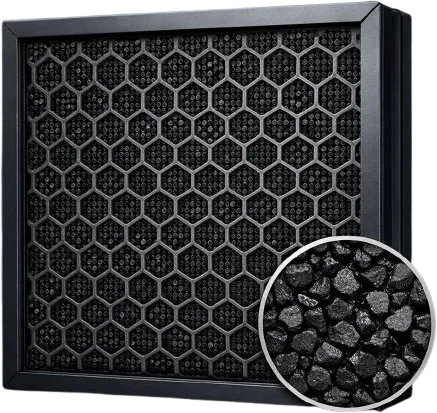

Activated Carbon Filters By Sangawar Pneumatic Company
Sangawar Pneumatic Company manufactures high-performance Activated Carbon Filters designed to remove oil vapors, odors, hydrocarbons, and harmful gases from compressed air systems. These filters are essential in industries where clean, odor-free, and contaminant-free air is required for sensitive processes and product quality.
Our activated carbon filters are engineered with premium grade carbon media that effectively adsorbs oil vapor and other impurities, ensuring extremely pure compressed air output. These filters are commonly used as the final stage of filtration in compressed air treatment systems to achieve superior air quality.
Key Features
High adsorption capacity using premium activated carbon
Efficient removal of oil vapor and unpleasant odors
Heavy-duty corrosion-resistant housing
Low pressure drop for energy efficiency
Long service life with reliable performance
Easy installation and maintenance
Working Principle
Activated Carbon Filters operate using the adsorption process. The activated carbon inside the filter has a highly porous structure with a large surface area that attracts and traps oil vapors, hydrocarbons, and odors present in compressed air. As the air passes through the carbon bed, these contaminants are captured, allowing clean and purified air to flow through the system.
Applications
Activated Carbon Filters from Sangawar Pneumatic Company are widely used in various industries, including:
Pharmaceutical Industry
Food & Beverage Processing
Chemical Manufacturing
Electronics Industry
Automotive Manufacturing
Textile Industry
Medical and Laboratory Applications
Advantages
Improves compressed air purity
Protects sensitive equipment and pneumatic tools
Helps maintain product quality and safety
Supports compliance with industrial air quality standards
Automotive Manufacturing
Textile Industry
Medical and Laboratory Applications
Why Choose Sangawar Pneumatic?
Sangawar Pneumatic Company focuses on precision engineering, reliable performance, and durable filtration solutions. Our activated carbon filters are designed to deliver consistent air purification, long operational life, and cost-effective performance for industrial compressed air systems.
Technical Specifications
| Filter type | Activated carbon adsorption filter (compressed air) |
|---|---|
| Contaminants removed | Oil vapour, hydrocarbons, odours, VOCs |
| Residual oil content | Down to ≈ 0.003 mg/m³ (typical carbon stage) |
| Media | Premium grade activated carbon |
| Position in air line | Final polishing stage, after coalescing filters and dryer |
| Housing | Heavy-duty, corrosion-resistant |
| Pressure drop | Low, for energy efficiency |
| Element life | Typically ≈ 6 – 12 months (duty dependent) |
All specifications are typical and fully customizable to your flow rate, pressure and dew point requirements.
Frequently Asked Questions
It removes oil vapour, hydrocarbons, odours and VOCs from compressed air by adsorption, producing clean, odour-free air for sensitive processes.
The carbon has a highly porous structure with a very large surface area. As compressed air passes through the carbon bed, vapour-phase contaminants are attracted to and trapped on that surface.
It can reduce oil vapour to around 0.003 mg/m³, which is suitable for oil-free-quality air in critical applications.
As the final polishing stage — after the coalescing pre-filters and the air dryer — so it treats already clean, dry air for the best result.
Coalescing filters remove liquid and aerosol oil, but only activated carbon removes oil in vapour form and the odours that come with it. The two work together.
Typically every 6 to 12 months, depending on the inlet oil load and air temperature. Regular replacement keeps the outlet air consistently clean.
Food and beverage, pharmaceuticals, electronics, medical and laboratory applications, breweries and packaging — anywhere odour-free, oil-free air is required.
No. It targets oil vapour and odour only. Pair it with an air dryer for moisture and with particulate/coalescing filters for solids and oil aerosols.
